Step-by-Step Tutorial: Connect All Agents with One Key Using Open-Source Magpie as a Unified API Gateway (Claude Code, Codex, Pi, and Hermes Examples)

Author’s note: This is a hands-on tutorial you can follow from start to finish. By the time you’ve read it and worked through the steps, you’ll have a setup where “one key and one gateway address are all you need to connect however many Agents you’ve installed.” When you want to switch models or rotate your key later, you’ll only need to change one place.

Before you start, make sure you know what you’re setting up

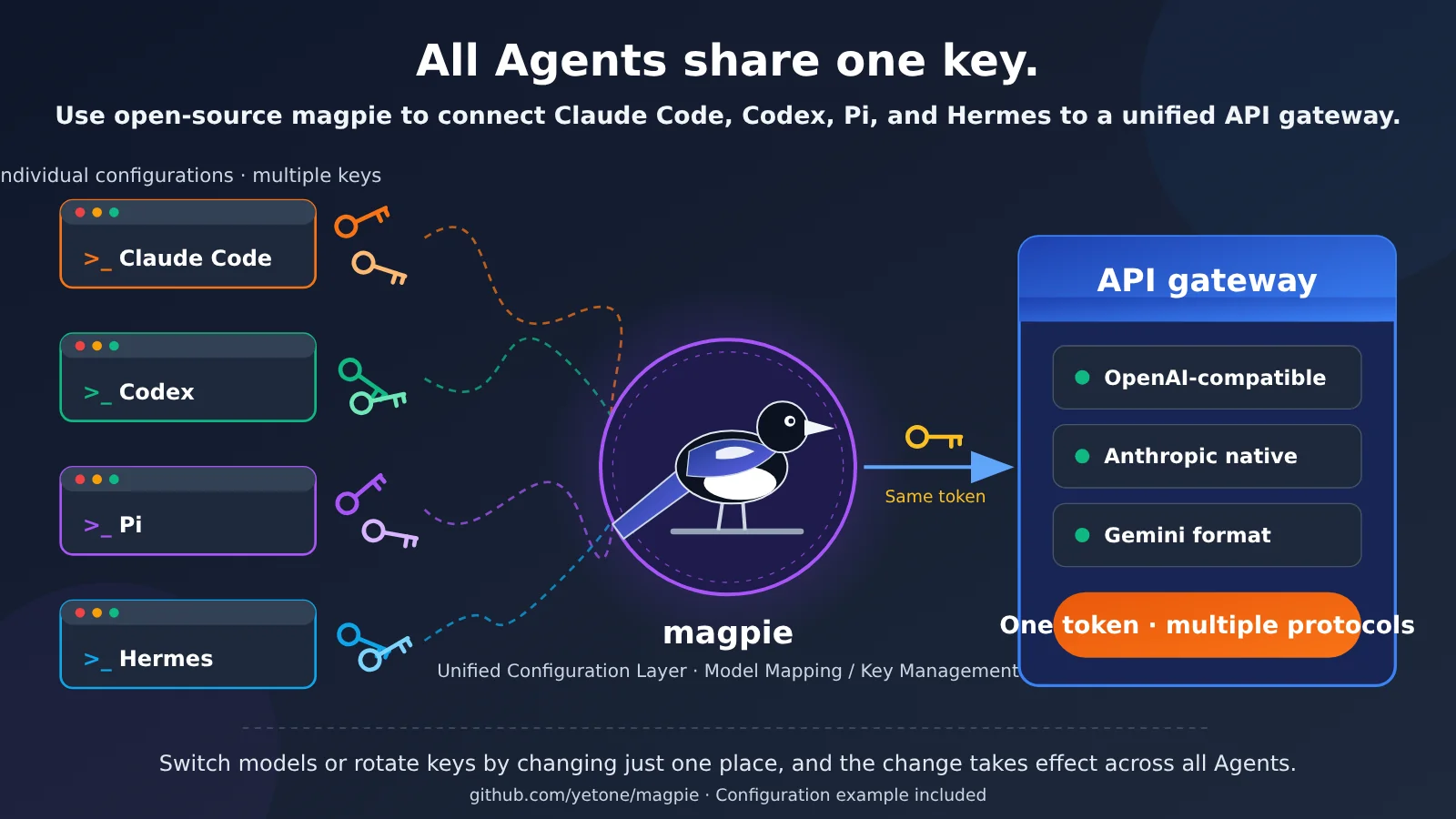

• Goal: Have all the coding Agents on your machine share one API key and one upstream address. This tutorial uses Claude Code, Codex, Pi, and Hermes as examples—you can connect as many as you’ve installed.
• Time required: About 30 minutes (not including registration or downloads)
• What you’ll need: An APIYI token (or any OpenAI-/Anthropic-compatible API proxy or official key), a computer that can run command-line tools, and at least one Agent already installed
• Difficulty: ★★☆☆☆. You just need to click a few buttons and copy and paste. No command-line input required.

Tutorial Roadmap

Understand in Three Minutes: What Does magpie Actually Do?

If you just want to “follow the steps,” you can skip this section. But spending three minutes on it will make troubleshooting much faster later.

Different agents have very different requirements for their upstream models. Configure them manually, and you’ll have to maintain a separate set of settings for every tool you install. Here are four of the most common:

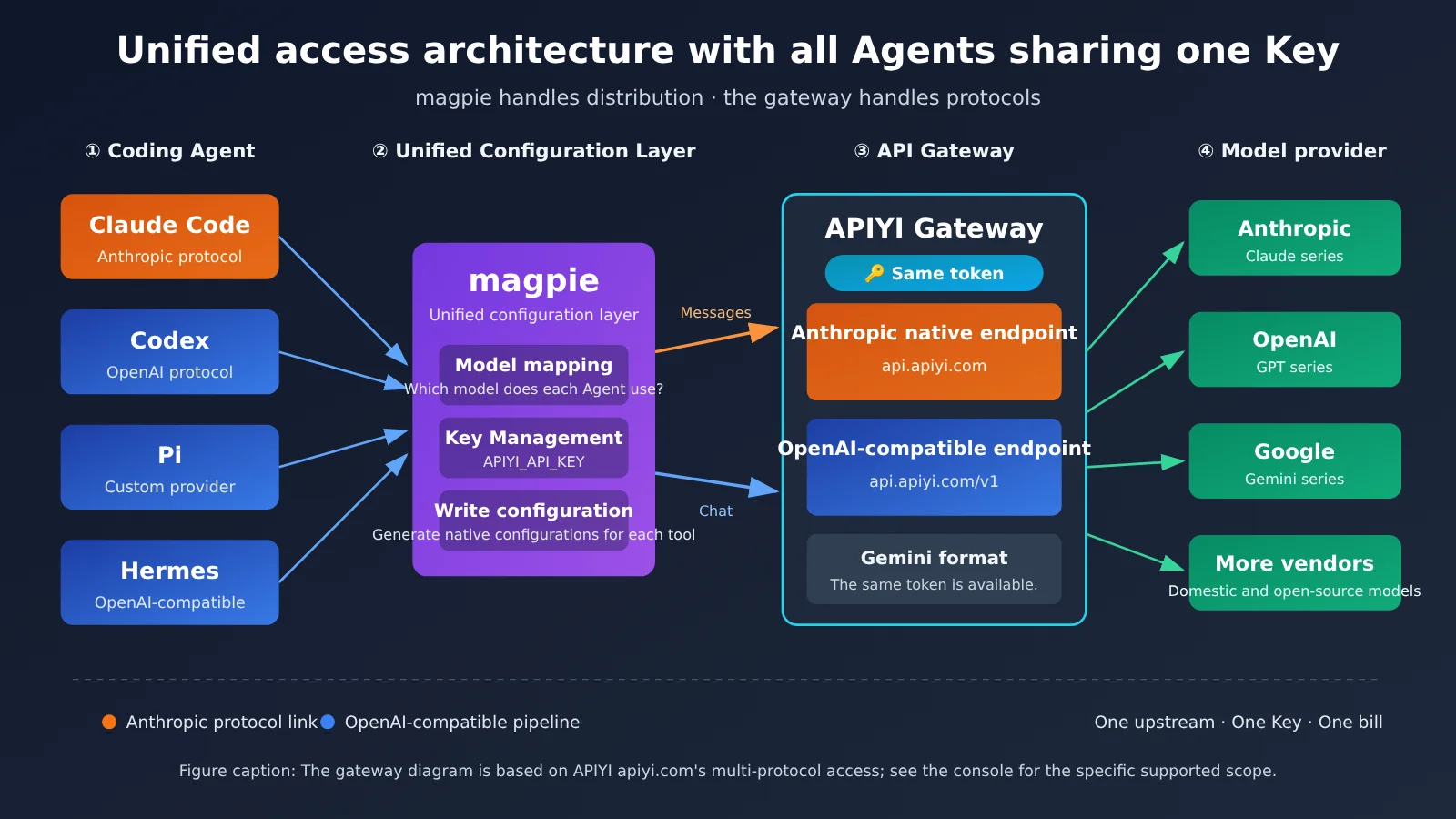

magpie (repository: github.com/yetone/magpie, tagline: “Every agent’s model. One place.”) solves this problem: it gives you one place to manage which model each agent uses and which key it reads, then updates each tool’s native configuration for you.

In short:

• magpie handles model routing: it decides which model Claude Code uses and which model Codex uses
• The gateway handles protocols: it forwards requests in Anthropic, OpenAI, or Gemini format to the actual model provider

So Your Upstream Gateway Should Support Multiple Protocols

The ideal setup is “magpie handles routing, the gateway handles protocols.” If the gateway only supports the OpenAI-compatible format, Claude Code needs an extra protocol-conversion layer. That makes the request path longer and increases the chance of inconsistent tool-calling formats.

APIYI’s approach is to support three major protocols with a single token: OpenAI-compatible, native Anthropic, and Gemini formats can all be used with the same key (check the console for the exact scope of support). That means you only need to connect one upstream to magpie, and all your agents can use it directly—no need to manage separate provider accounts and bills.

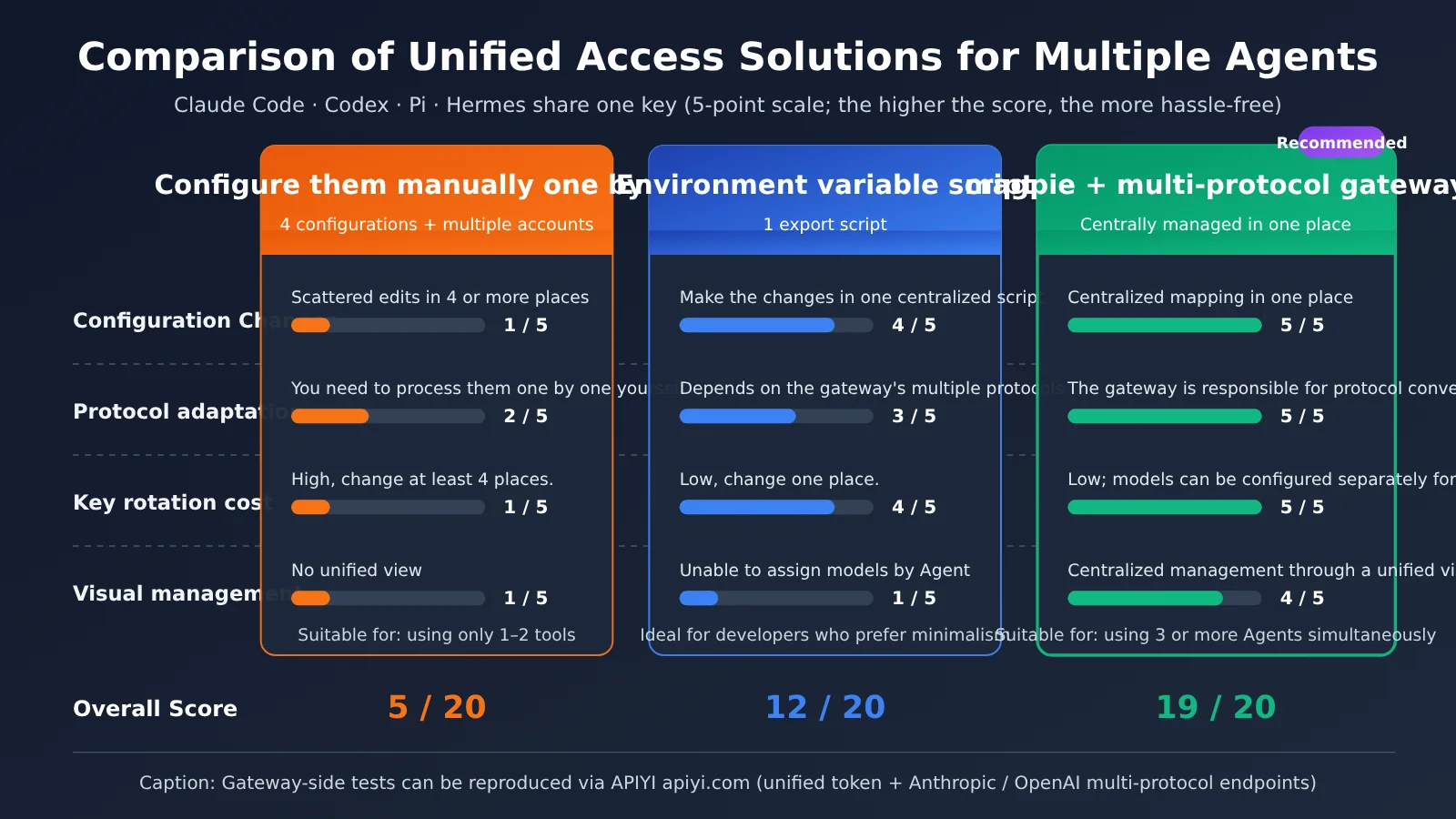

How to Choose Between the Three Approaches

Manual configuration is the most straightforward option, but as you add tools, keys end up scattered across a pile of files, making rotation and troubleshooting more costly. An environment-variable script has no dependencies and takes just a few dozen lines, but it can’t assign different models to different agents. For needs like “Claude Code uses Claude, Codex uses GPT, and Hermes uses a cheaper model,” a centralized management solution like magpie is the easiest way to go.

Step 1: Get a Key and Copy It

1.1 Create a token in the APIYI console

Go to the APIYI console (apiyi.com) and create a token, then copy it.

You don’t need to run any commands for this step. The Key will only appear once in the entire process: when you paste it into magpie’s Providers panel (Step 3). After you paste it, magpie will write the configuration files for each Agent automatically. You won’t need to export environment variables or edit files like config.toml or settings.json.

🚀 Don’t have a token yet? Sign up at APIYI apiyi.com and claim some test credits. You can use one token to try out the tools you use regularly, then decide which models you want to keep using long term.

1.2 Keep these two addresses handy

You’ll need to choose one of these addresses when you fill in the provider details in Step 3:

✅ Step complete when: The token is on your clipboard, and you know which address to enter in Step 3.

Step 2: Install magpie and Get to Know These Two Pages

For magpie’s source code, installation instructions, and configuration format, refer to the README in the official repository (github.com/yetone/magpie). The project is updated frequently, so installation commands and field names may change between versions. The screenshots and steps below are the parts that should remain useful over time.

Once you’ve installed and launched magpie, you’ll see a window with navigation on the left. This tutorial uses just two pages: Agent (which model each tool uses) and Providers (where the Key is configured).

① Agent in the left navigation is the central control panel for all your Agents:

Figure 1 · Agent page: Each tool has its own row. The switch on the right controls whether it’s connected to magpie, and the dropdown beside it lets you choose a model.

Here are three things to look for on this page:

② Providers in the left navigation is where you add your upstream Key. We’ll cover this in the next section.

If you want to see what magpie’s configuration files look like first, take a quick look at the providers / agents structure in the official README. The basic idea is to “give an upstream provider a name, enter its base_url and Key, then assign a model to each Agent.” But you can do everything in the window for everyday use: magpie writes the native configuration for each tool, which is much safer than editing YAML by hand.

✅ Step complete when: The window opens, and you can see Agent and Providers in the left navigation.

Step 3: Add Your Key Under “Providers”

3.1 Open the Providers Page

Click Providers in the left sidebar (① in the red box in Figure 2), then click + Add Provider in the upper-right corner (② in the red box):

Figure 2 · On the Providers page, open “Providers” from the left navigation. “+ Add Provider” in the upper-right corner is the only way to add one.

Providers you’ve already added appear here as cards. The second line on each card shows its address and the number of available models (for example, api.apiyi.com · 11 models). If you want to check whether a provider is ready to use, first make sure there’s a number on this line.

3.2 Choose a Provider Type

Click + Add Provider to open a selection panel organized into several groups (Figure 3):

Figure 3 · The Add Provider panel has five options: subscriptions, providers, API proxies, local services, and magpie on another computer.

The groups correspond to five different types of credentials:

If you’re using APIYI, its OpenAI-compatible endpoint is a standard API proxy setup. Choose the matching option in the API proxies group. If you have a custom OpenAI- or Anthropic-compatible key, click + Custom Provider at the bottom (red box in Figure 3) and enter the address and key. For the address, enter https://api.apiyi.com/v1 for OpenAI-compatible requests or https://api.apiyi.com for native Anthropic requests.

Here’s the full configuration panel for a provider. You’ll only need to set four fields:

Figure 4 · APIYI provider settings: choose a protocol and enter the address under Base URL, add your key under Accounts, and select the models you want to make available to Agents under Models.

This is where the “one token, multiple protocols” setup we mentioned earlier comes together. The address is https://api.apiyi.com for each protocol: choose Anthropic-compatible for the native endpoint Claude Code needs, OpenAI-compatible for the /v1 endpoint used by Codex, Pi, and Hermes, or Gemini-compatible for Gemini. You don’t need to manage three providers and three separate keys.

After saving, return to the Providers list and check two things: the card’s second line shows a model count, and its toggle is on. If you see · N models, your key and address are connected—this check confirms the setup, so there’s no need to run a separate command.

✅ Step complete when: Your provider card appears in the list and shows something like · N models instead of “Not configured.”

Step 4: Connect Each Agent You’ve Installed

Return to the Agent page and repeat the same three steps for each tool you’ve installed. This page lists all the Agents magpie can connect to. The list is growing, and any tools you haven’t installed will show “CLI not found.” Connect the tools you’ve installed; the table below just uses four of the most common ones as examples:

1. Turn on the toggle on the right (it changes from gray to highlighted)
2. Choose a model next to the toggle (if you don’t select one, the default is used; your selection is written to that tool’s own configuration)
3. Restart the tool when prompted (Codex, Claude Code, Pi, and Hermes usually need a process restart to load the new configuration)

Figure 5 · Open the model dropdown. The first option, “Default,” lets the Agent use its own model without going through magpie. Each option below is labeled “via magpie.” Choose one to route the Agent to that model from your upstream provider.

Here are some common statuses you might see. These indicate that things are on the right track:

• Connected: The configuration has been written and will take effect after you restart the tool
• Not connected · Using XXX’s own settings: The toggle is off, or no model has been selected
• Only XXX’s own models are available; magpie can’t connect: This tool (such as Cursor) only allows its own models. This is a design limitation, not a configuration error
• CLI not found: The tool isn’t installed or isn’t in your PATH. Install it or update your PATH, then try again

💡 Want to use different models with different Agents—Claude with Claude Code, GPT with Codex, and a cheaper model with Hermes? Choose each model here. This is one of magpie’s main advantages over “environment variable scripts.”

✅ Step complete when: The toggles for your installed tools are on, and their status no longer says “Not connected.”

Step 5: Run a One-Line Test in Each Agent

Configuration isn’t complete until it works. Send the simplest possible task in each tool:

The easiest way to confirm that requests are actually going through the gateway is to check the token’s usage and logs in the APIYI console. If you see new request records, that means all the Agents’ requests are being routed through the same key.

✅ Acceptance criteria for this step: Every Agent returns a response, and the console shows the corresponding request records.

Appendix: Choosing a Model (The Default If You’re Not Sure)

💡 Try the same task with different Agents and models. With a shared key, switching only requires changing the model name, making it easy to compare costs.

Step 6 (Optional): What Configurations Does magpie Write for You?

This step isn’t necessary to get things working, and it won’t affect whether you can run the tools. You don’t need to touch these files for everyday use: as soon as you turned on the switch in Step 4, magpie wrote all of the configurations below. They’re included here for two reasons: so you know which layer to check if something goes wrong, and so you can copy these settings directly if you ever decide to stop using magpie.

Claude Code: ANTHROPIC_BASE_URL + ANTHROPIC_AUTH_TOKEN

export ANTHROPIC_BASE_URL="https://api.apiyi.com"   # Native Anthropic endpoint
export ANTHROPIC_AUTH_TOKEN="$APIYI_API_KEY"
# Optional: Set the default model (check the model list in the console)
# export ANTHROPIC_MODEL="<Claude model name>"
claude

You can also add these to the env field in ~/.claude/settings.json so they don’t depend on your terminal session.

Codex: The provider section in ~/.codex/config.toml

# ~/.codex/config.toml
model = "<GPT-family model name>"
model_provider = "apiyi"

[model_providers.apiyi]
name = "APIYI"
base_url = "https://api.apiyi.com/v1"   # OpenAI-compatible endpoint
env_key = "APIYI_API_KEY"
wire_api = "responses"                   # If the selected model doesn't support Responses, change this to "chat"

wire_api is the setting most likely to trip you up: newer versions of Codex use the Responses protocol by default. If the model only supports Chat Completions on the gateway side, you must change this to chat.

Pi and Hermes: Declare a custom OpenAI-compatible provider

The idea is the same: set base_url to https://api.apiyi.com/v1 and reference APIYI_API_KEY for the key. The structure varies between versions, so check each tool’s official documentation:

// Pi: Declare a provider in your custom model configuration (refer to Pi's official documentation for the exact structure)
{
  "providers": {
    "apiyi": {
      "baseUrl": "https://api.apiyi.com/v1",
      "api": "openai-completions",
      "apiKey": "APIYI_API_KEY",
      "models": [{ "id": "<model name>" }]
    }
  }
}

# Hermes: Run hermes model and select a custom OpenAI-compatible endpoint.
# Enter the following details when prompted (or add them to a .env / config file in the Hermes config directory):
#   Base URL : https://api.apiyi.com/v1
#   API Key  : $APIYI_API_KEY
#   Model    : <model name>

#!/usr/bin/env bash
# agents-env.sh — A fallback that doesn't depend on magpie: use one key for all agents
# Usage: source agents-env.sh
: "${APIYI_API_KEY:?Please export APIYI_API_KEY first}"

# Claude Code (Anthropic protocol)
export ANTHROPIC_BASE_URL="https://api.apiyi.com"
export ANTHROPIC_AUTH_TOKEN="$APIYI_API_KEY"

# Common variables for OpenAI-compatible tools such as Codex, Pi, and Hermes
export OPENAI_BASE_URL="https://api.apiyi.com/v1"
export OPENAI_API_KEY="$APIYI_API_KEY"

# Check connectivity
curl -s "$OPENAI_BASE_URL/models" \
  -H "Authorization: Bearer $APIYI_API_KEY" | head -c 300 && echo
echo "✅ All agents are now pointed to the same gateway"

curl -s "https://api.apiyi.com/v1/models" \
  -H "Authorization: Bearer sk-your-token" | head -c 300

Start Here If Something Goes Wrong: Four Common Errors

Always troubleshoot from the bottom up: first confirm the gateway and token are working (does the provider card show · N models?), then check the native configuration for the individual agent, and only then look at magpie’s mapping layer. These three checks will tell you whether the problem is with the upstream service, the tool itself, or the shared configuration layer.

Frequently Asked Questions

Five-Minute Reference

• Division of responsibilities: magpie handles model mapping; the gateway handles protocol forwarding. Each does one job.
• One API key: Choose an upstream provider that supports multiple protocols so all agents can share one key and one bill.
• Setup order: Create a key in the console → paste it into “Providers” → turn on the Agent toggle → test each agent one by one. Everything is done in the window—no commands needed.
• Troubleshooting order: Gateway → agent’s native configuration → magpie mapping layer. Work from the bottom up.
• Claude Code tip: Use ANTHROPIC_AUTH_TOKEN; don’t add /v1 to base_url.
• Codex tip: wire_api must match the protocol supported by the model.
• Fallback option: An environment-variable script (agents-env.sh) can also let all agents share one key.

If you use three or more agents, it’s worth spending half an hour setting this up. After that, changing models or rotating keys only requires updating one place. We recommend getting test credits through APIYI at apiyi.com, then testing your regular tools before fine-tuning each agent’s model assignments for specific tasks.
